General information

Required databases

• DiversityDescriptions (see Databases for further information).

Range of functions

Identification frame

1. Character panel: selection of the characters.
2. Character states or numeric data panel: preselection of states of the selected character (to finalize the query, the <Select> button is to be used).
3. Query criteria panel: display of previous character state selections.
4. Matching items panel: display of matching items (selecting any item will bring up a complete description of that item).

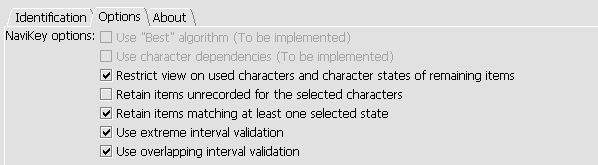

Options

• Use "Best" algorithm
  To be implemented.
• Use character dependencies
  When checked, controlling character states make dependent characters - as defined in the database - inapplicable.
• Restrict view on used characters and character states of remaining items
  When checked, NaviKey only displays those characters and states (in the two top main panels) that will reduce the number of item matches; characters or states which are not applicable to the remaining items (in the bottom right main panel) or apply to all of the items in the same form are no longer displayed. If a character is selected, for which more than one state applies, multiple state selection may be performed using the <Ctrl> (or corresponding) button (see also "Enable multiple selection of character states"). In the case of numeric characters, the top right panel provides fields for input of numeric values. After the input of either a single measurement or a range of values, the selection of the <Add> button will finalize the query
• Retain items unrecorded for the selected characters
  Checking the box enables the "Direct identification" mode with the undefined states included; i.e., NaviKey also displays those items (in the bottom right panel), for which the selected character(s) have (so far) not been specified in the database. When unchecked, it only displays the items with at least one of the selected characters being specified. This behaviour largely corresponds with the "analysis/data retrieval mode" in CSIRO-DELTA Intkey and in the Identify module of DiversityDescriptions
• Retain items matching at least one selected state
  When checked, NaviKey selects those items matching by at least one character state of the selected characters, otherwise only those items matching directly the selected combination of character states.

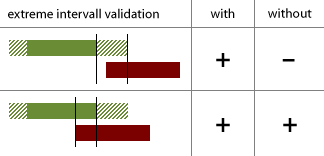

• Use extreme interval validation
  When checked, the whole range between the extreme values (if present in the item data set) is used in numerical queries, otherwise only the range between minimum and maximum values (if present in the item data set) is considered.

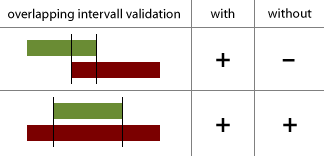

• Use overlapping interval validation
  When checked, overlapping between queried and the specified numerical intervals is matching, otherwise not.



Versions

Example

Standalone - Applet - Plugin

Download classes
